Thread: 380 vrx head unit wiring

Threaded View

  1. 27-12-2011 12:26 PM #1
    TiMi
    TiMi is offline
    On The Hour, Every Hour....... Minimum TiMi's Avatar
    Join Date
    Feb 2010
    Location
    South Australia
    Posts
    2,404

    Default 380 vrx head unit wiring

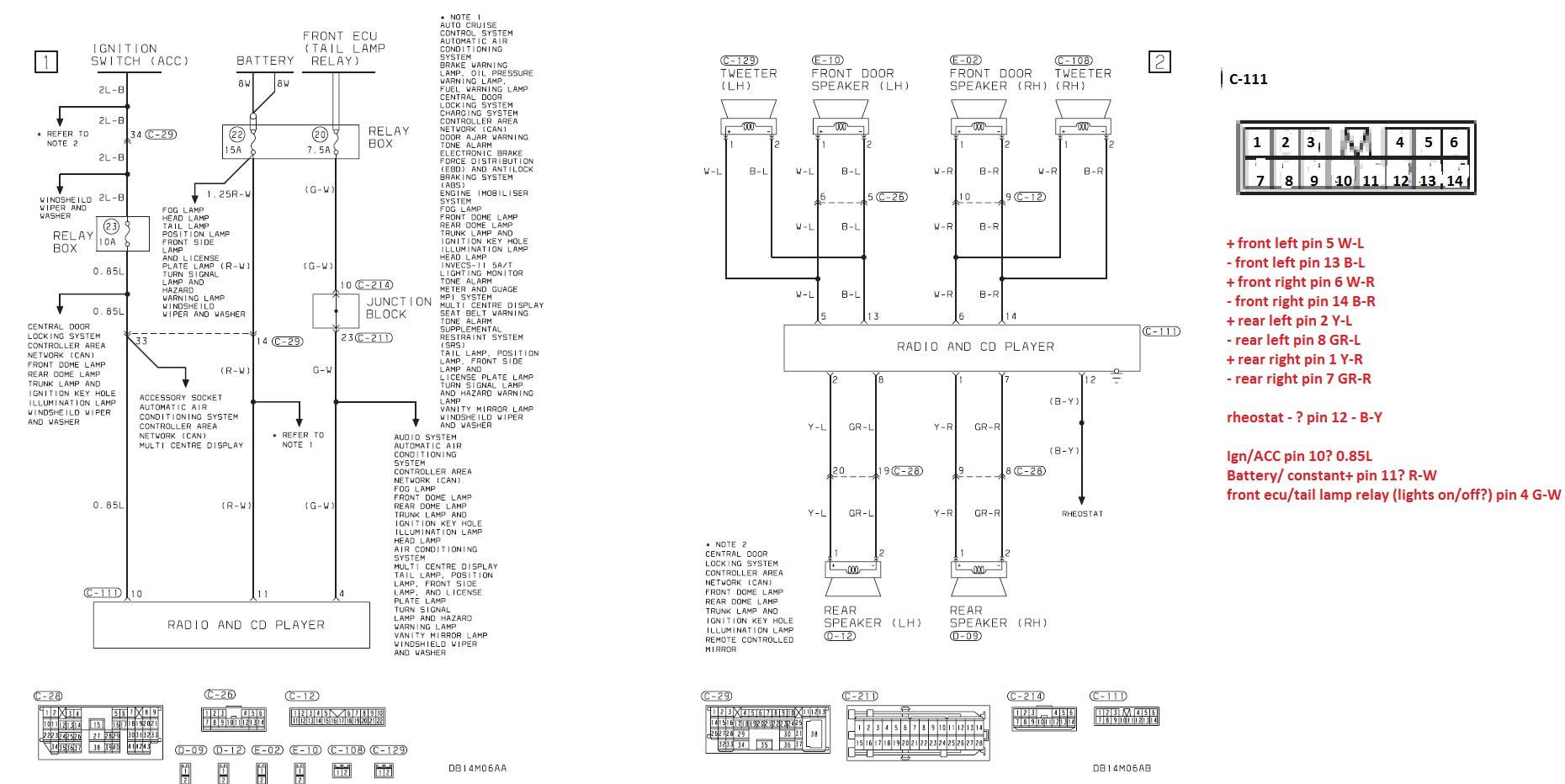

    Does anyone know exactly whats going on in the diagrams? I think I've got this, just want to double check before I start a fire. Pin numbers and colours line up if you are looking along the wire into the back of the plug it seems.


    edit: found wire colours
    Last edited by TiMi; 27-12-2011 at 01:04 PM.
    20.1sec 400m
